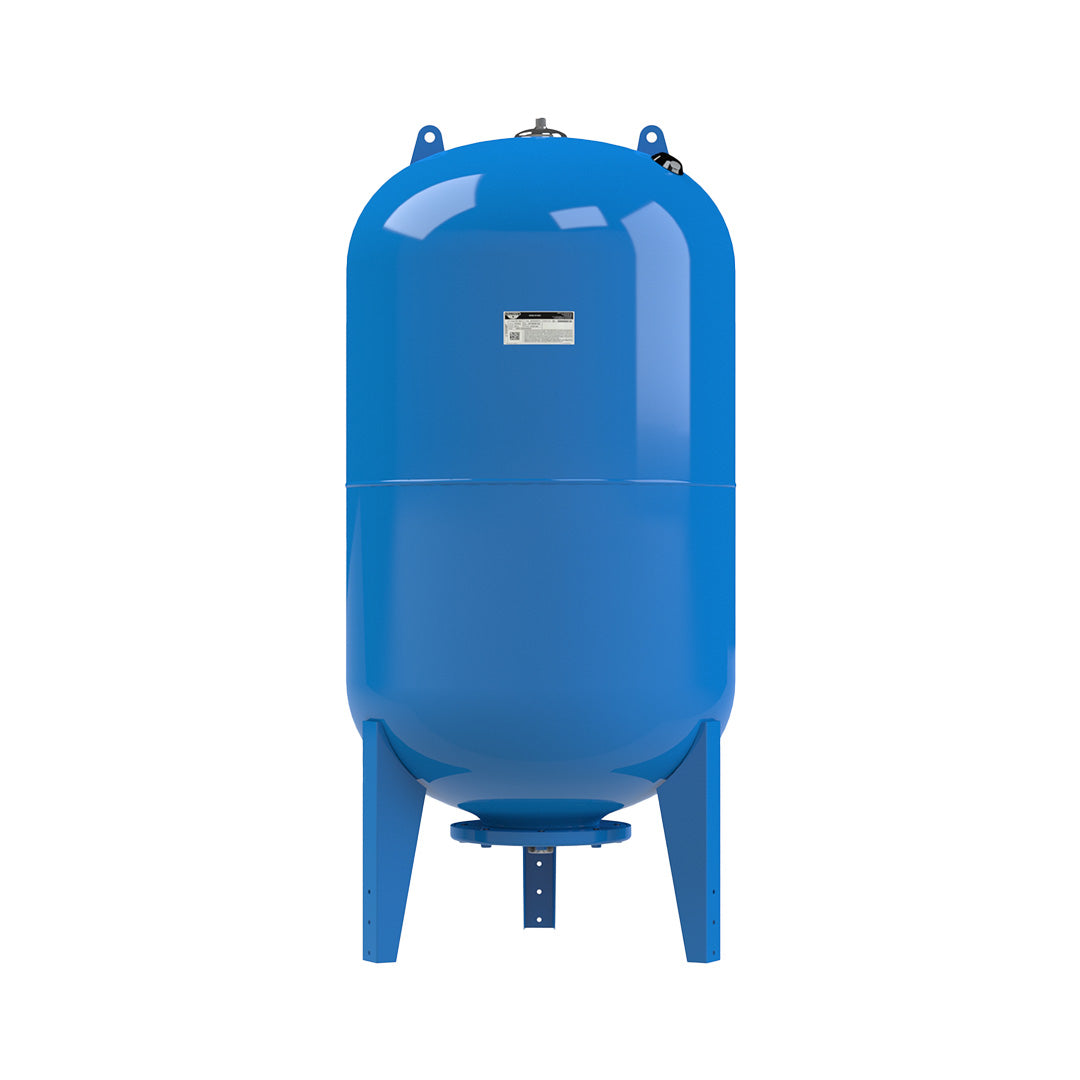

Zilmet 500 Ltr Ultra-Pro Floor Standing Vertical Potable Vessel

Product no: 11A0050006

The Ultra Pro range of expansion vessels are designed to be used on potable water systems, more specifically unvented cylinders & pump, potable water, pumps and booster sets. Ultra Pro incorporates a stainless steel threaded connection and flange, carbon steel outer shell and removable bladder type membrane enabling the ease of maintenance and replacement.

TECHNICAL FEATURES

MAXIMUM OPERATING PRESSURE 10 bars

OPERATING TEMPERATURE -10/+99°C

PRE-CHARGE PRESSURE 2.0 bar

CAPACITY: 500 Litres

ØD DIAMETER (MM) 750 H HEIGHT(MM) 1340

E(MM) 290 Ø (is the distance from the bottom connection to the floor).

FITTING 1 1/4″G

• High-pressure potable expansion vessel

• 5 years manufacturers warranty

• Shell: Carbon Steel

• Suitable for multiple plumbing systems

• 100% factory tested

• Externally finished in a hard wearing epoxy powder coating

• Replaceable membrane and flanges making the vessel repairable

• Fully certified according to the Pressure equipment directive 2014/68/EU
