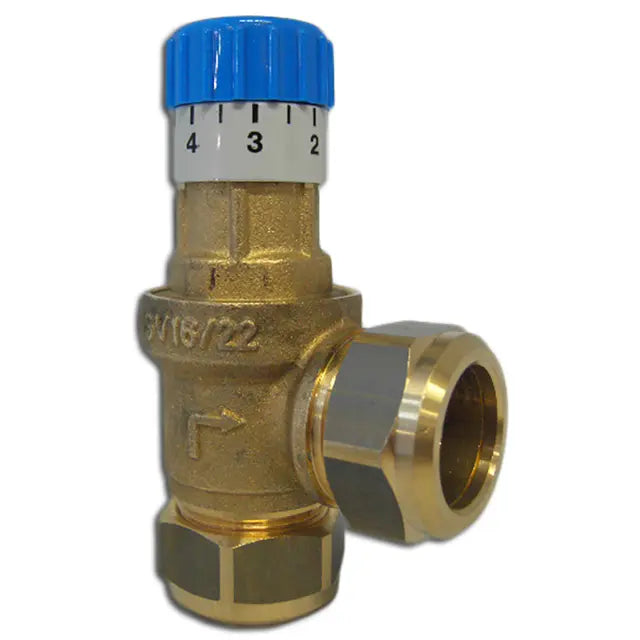

Watts 265324 22mm Compression USVR Differential Bypass Valve

Product no: 0265324

Features & Benefits

0.03-0.50 bar - 22mm Compression - USVR Differential By-pass Valve - 0265324

Relief valve for systems with automatic or manual shut-off elements on the radiators (for instance: thermostatic valves or two-way zone valves)

22mm x 22mm Compression End Connections

Body and cap of brass CW617N.

Adjustment:

- Position "0" = Fully open

- Position "7" = Close to closing with 0.5 bar pressure

Max. operating pressure: 6 bar

Overpressure: 10 - 15%.

Max. operating temperature: 110°C

Plastic knob
